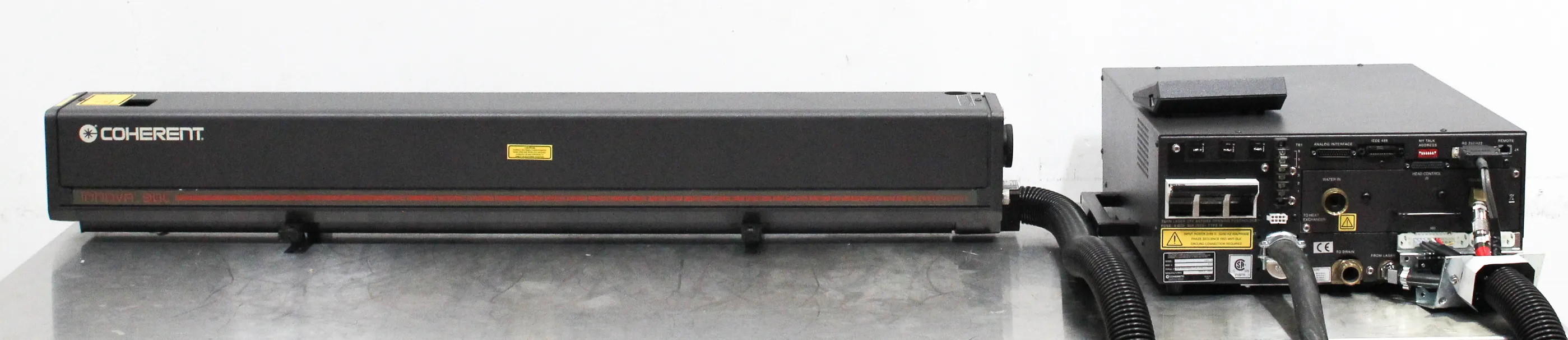

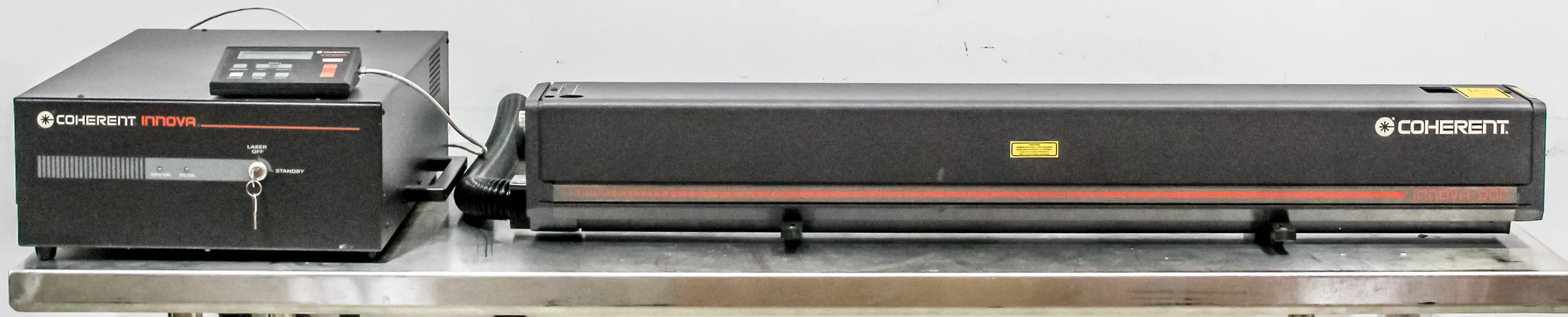

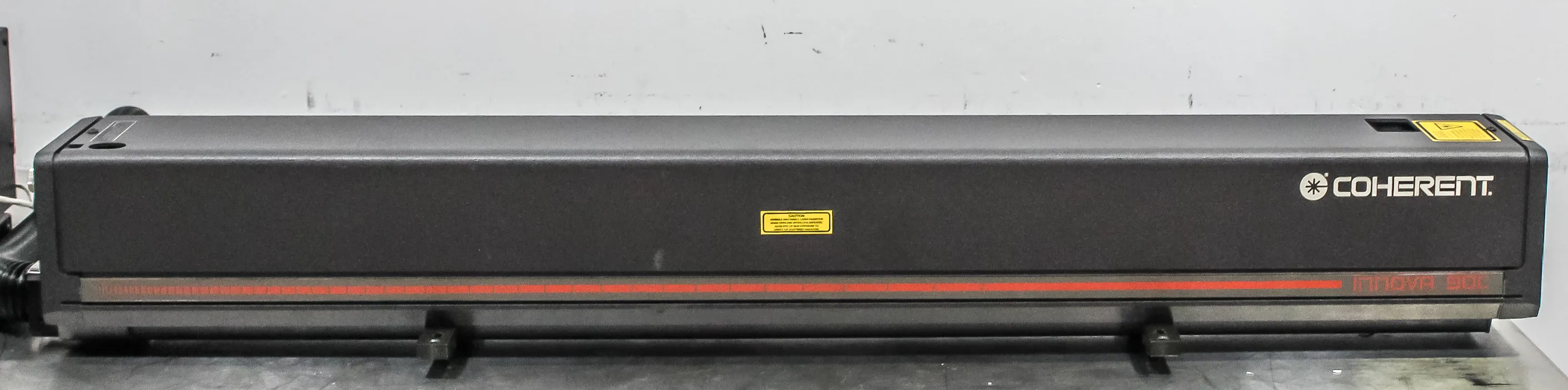

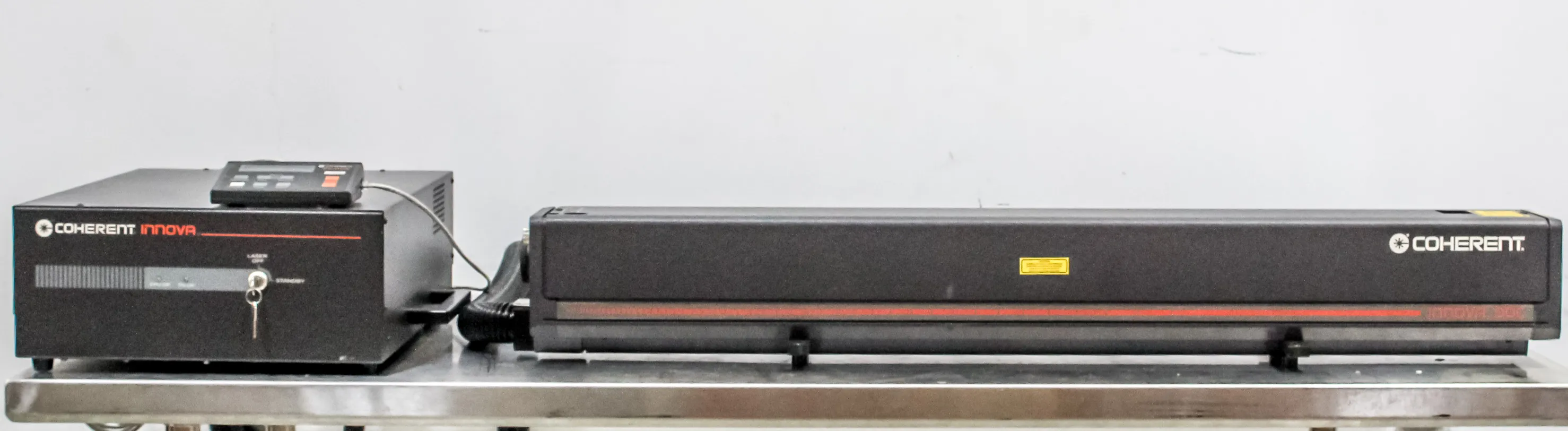

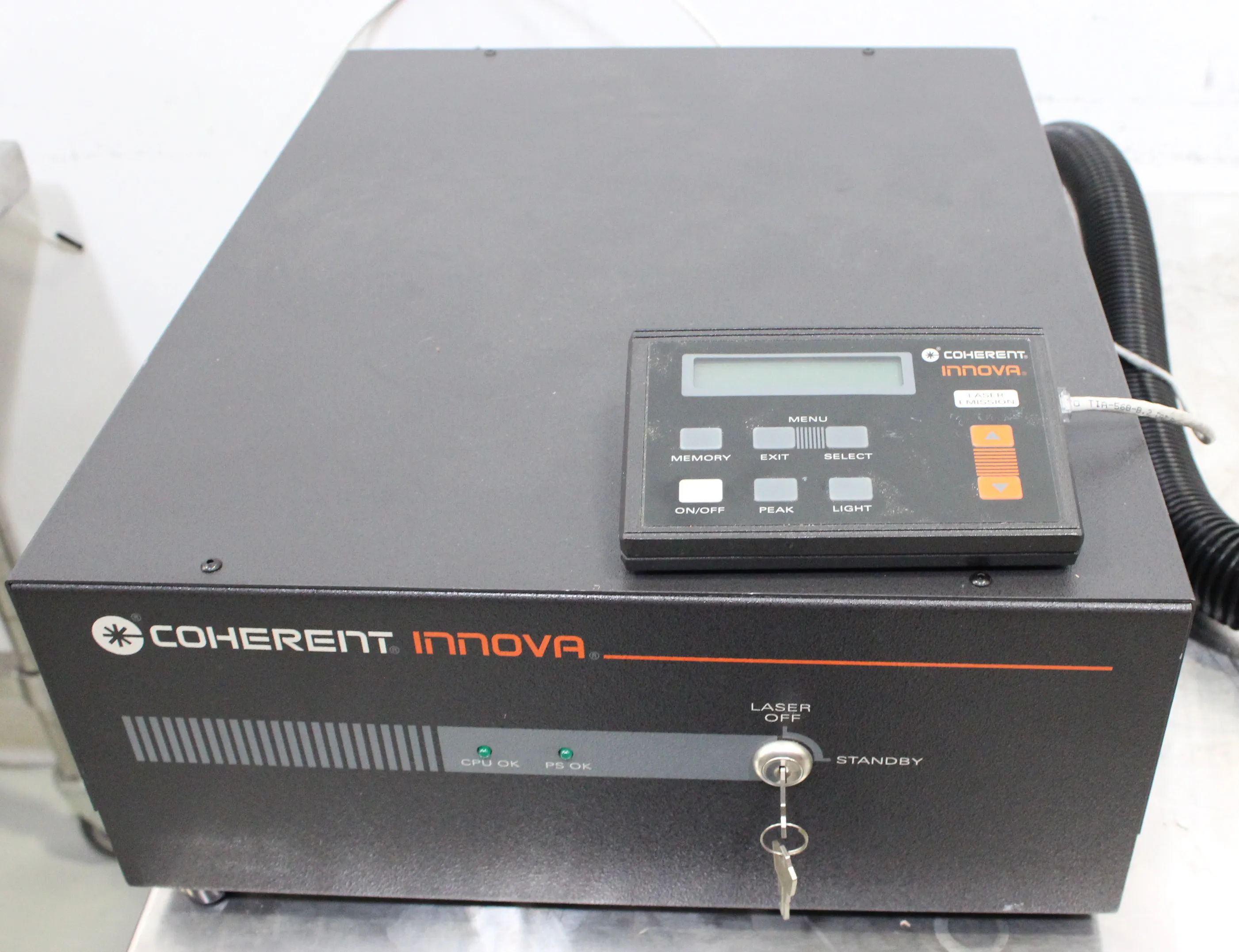

COHERENT Innova I90C-4 Laser Module
- Make COHERENT
- Hertz 50Hz/60Hz
- Model I90C-4

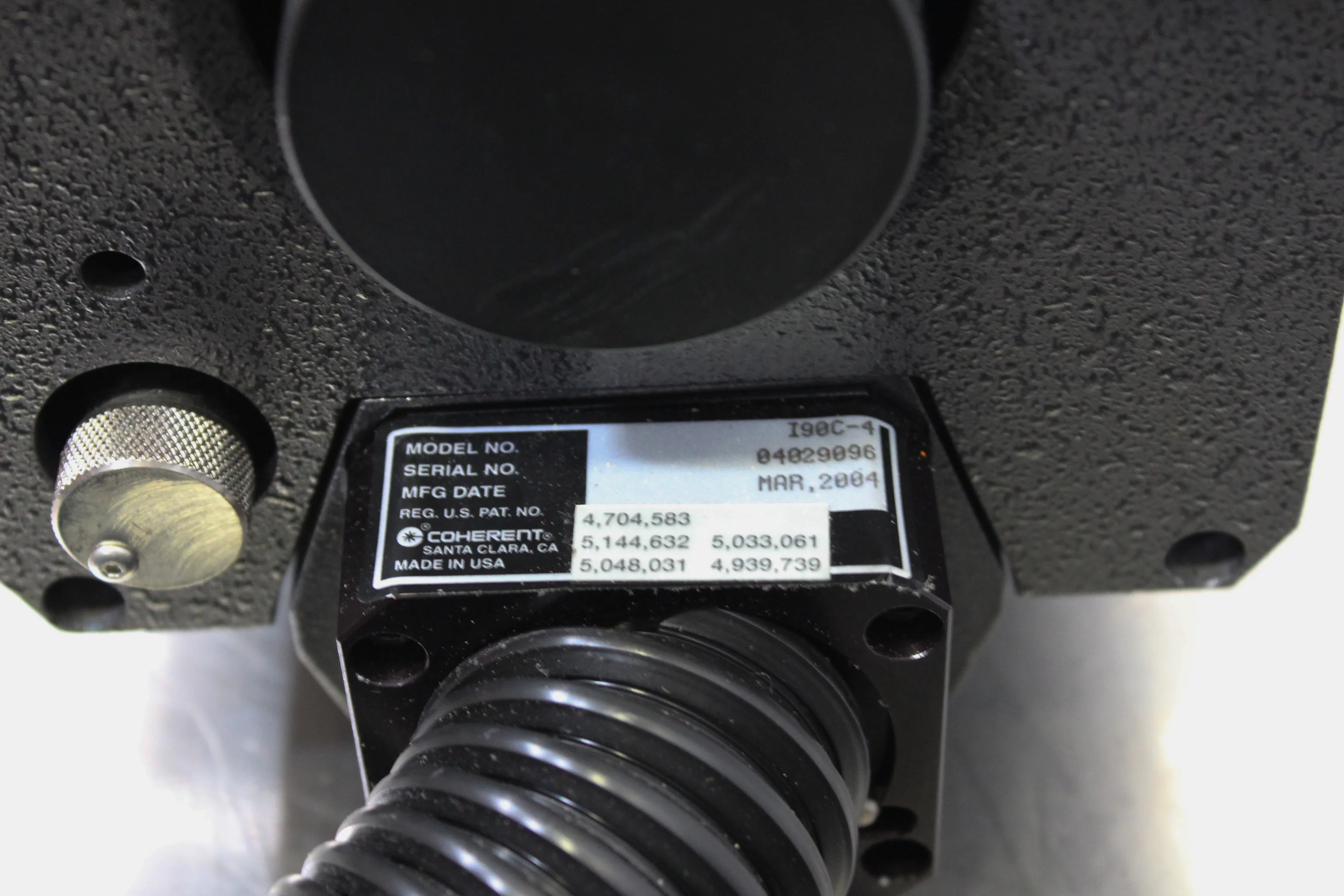

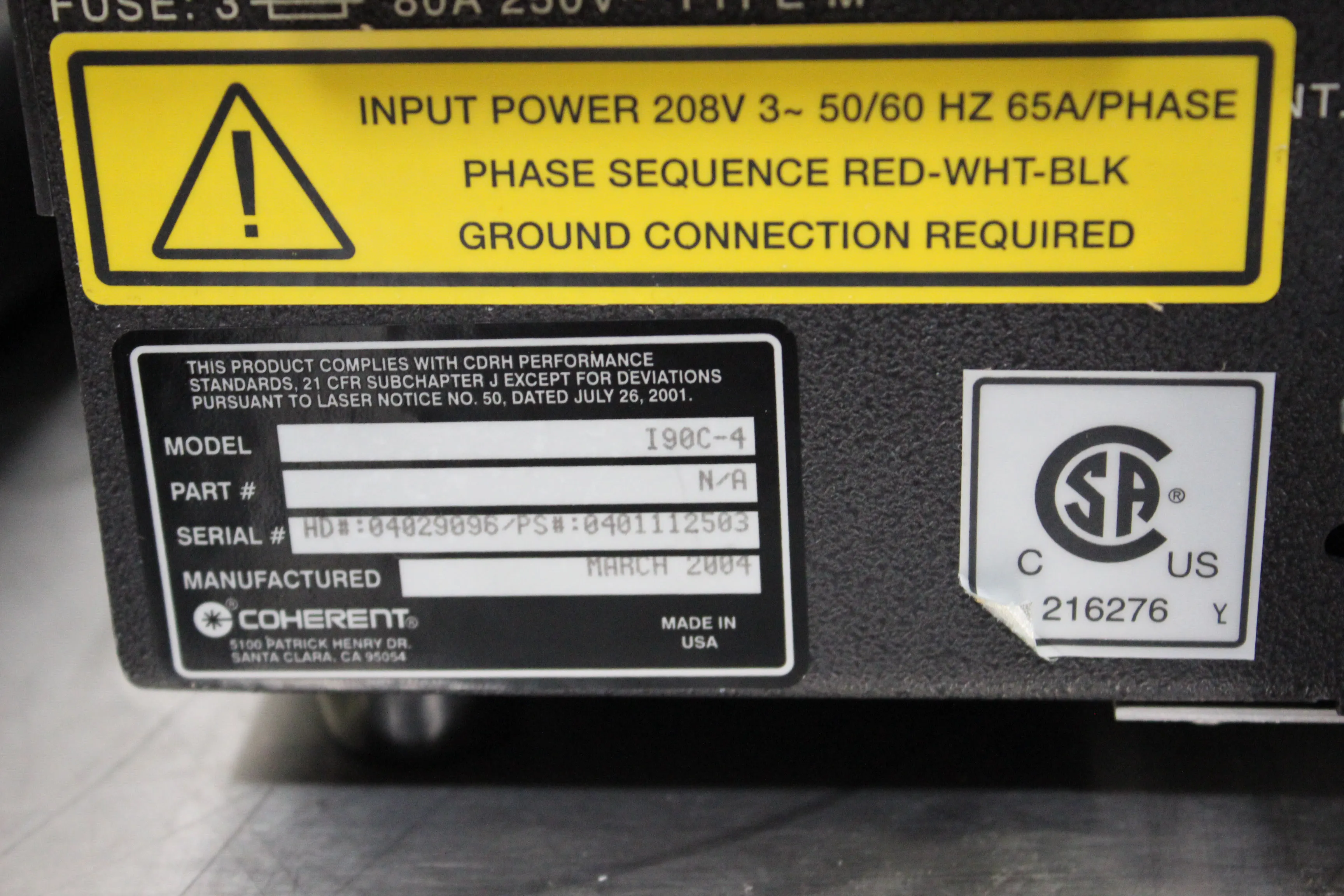

- Serial 04029096/ 0401112503
- Weight 200.0 Lb
- Voltage 220V

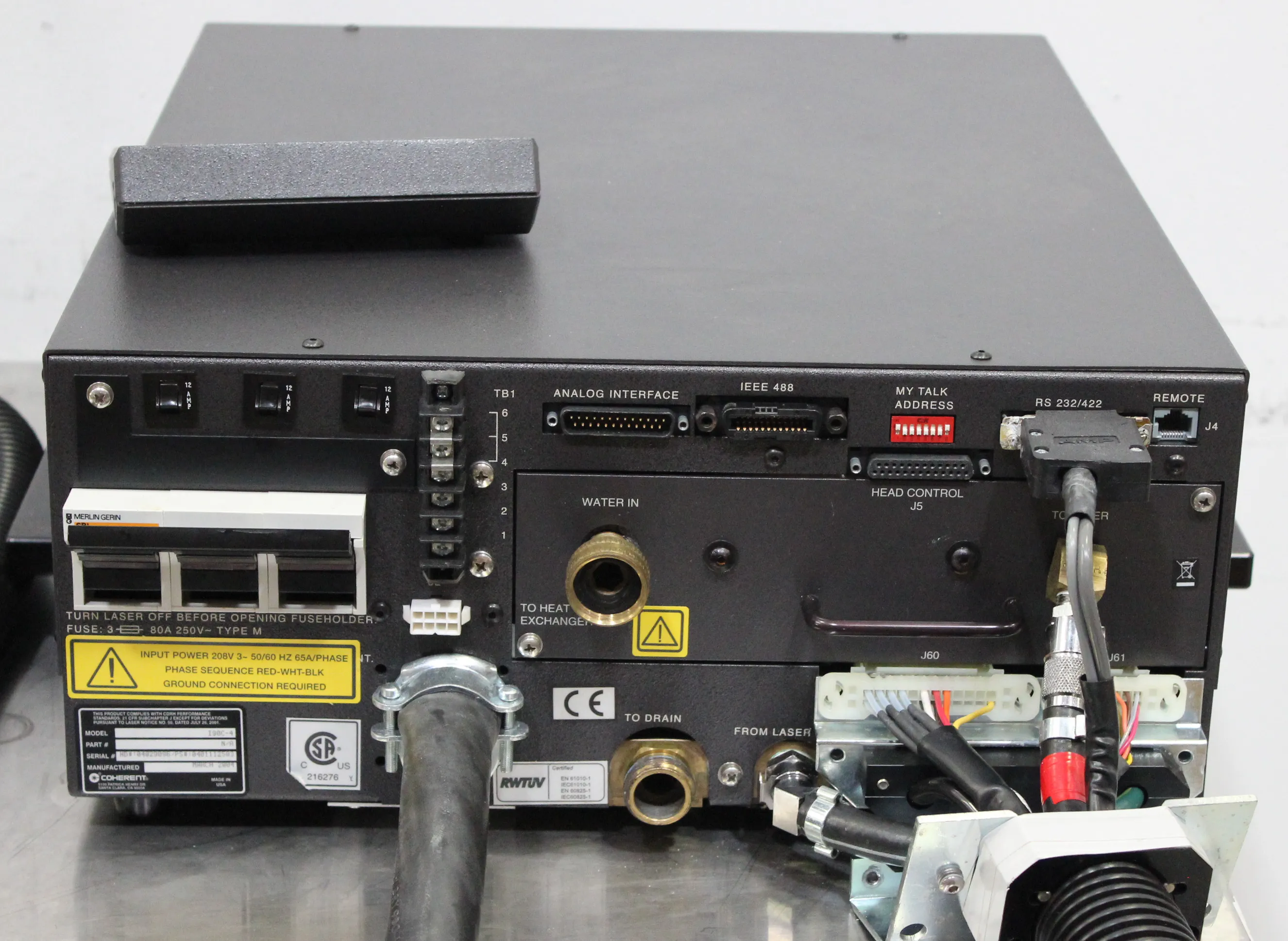

- Includes All cables (power and data) included |
- Warranty AS-IS
- Dimensions 30.0in x 80.0in x 15.0in
- Shipping Type Freight
- Item Condition S (Salvage)
- Manufacturing Date Does Not Apply
Product Information
The COHERENT Innova I90C-4 is a used laser module offering high levels of performance, long term reliability, and multiple operating configurations. It features a SuperInvar resonator for superior passive stability, single-frequency option for narrow linewidth and long coherence length, intracavity aperture for precise mode control, low-noise linear passbank power supply, compact digital remote control, and Innova Series V plasma tube for long trouble-free lifetime. The laser provides a high level of performance with long-term reliability, multiple operating configurations, and ease-of-use. The system offers versatility and stability for a range of applications such as argon and krypton laser, with specific beam diameters, divergences, waist diameters, cavity lengths, power stability, and optical noise regulation.
Key Features- SuperInvar resonator for superior passive stability
- Single-frequency option for narrow linewidth and long coherence length
- Intracavity aperture for precise mode control
- Low-noise linear passbank power supply

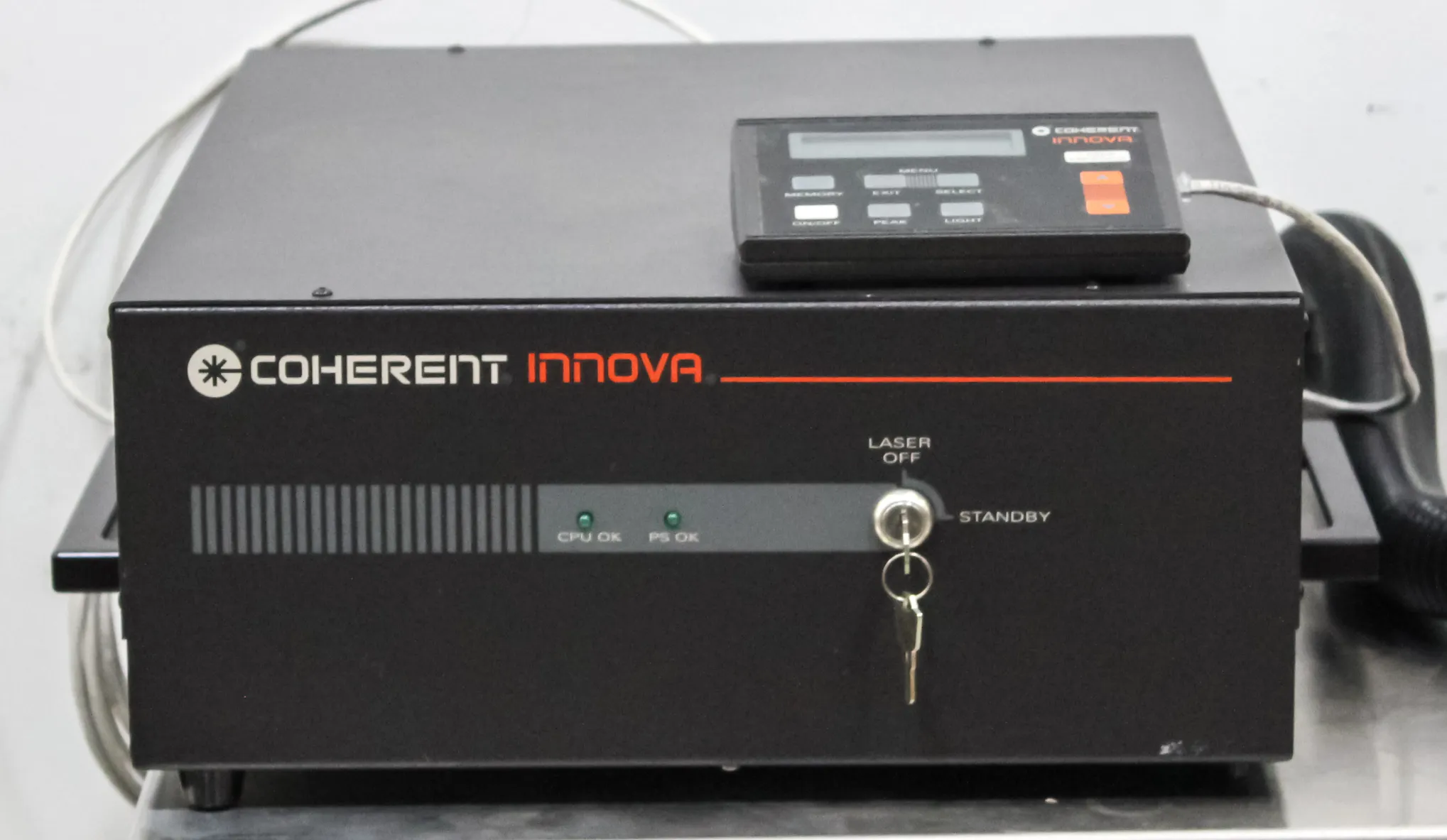

- Compact digital remote control
- Innova Series V plasma tube for long trouble-free lifetime
- Laser Type: Argon, Krypton
- Beam Diameter: 1.5 mm (@ 1/e2 points)
- Beam Divergence (Full Angle): 0.5 mrad, 0.8 mrad
- Beam Waist Diameter: 1.4 mm, 1.1 mm
- Beam Waist Location: 1.50 m, 1.27 m
- Cavity Length: Single-line - 1.16 m, Multiline - 1.14 m
- Long Term Power Stability: Light Regulation (+/- 0.5%), Current Regulation (+/- 3.0%)
- Optical Noise (rms): Light Regulation - 0.2%, Current Regulation - 0.2%
Metric: 89.811 kg
Imperial: 198 lb
Metric: 22 cm x 72 cm x 8 cm
Imperial: 8.66 in x 28.35 in x 3.15 in
901320
Harmonized Code DetailsLasers, other than laser diodes
