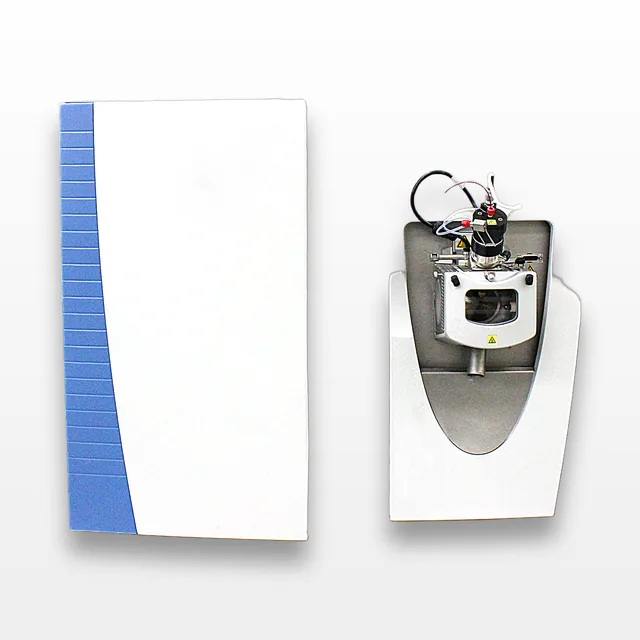

Thermo Scientific Q Exactive Plus Mass Spectrometer High-Performance LC-MS/MS
Thermo Scientific
Details
-
CategoryMass Spectrometry
-
Dimension30.0in x 36.0in x 38.0in
-
Serial03260L
-
Shipping TypeFreight
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Thermo Scientific Q Exactive Plus Mass Spectrometer is a high-performance system designed for advanced quantitative and qualitative analyses in the life sciences. This pre-owned unit, maintained in good condition, powers on and completes initial startup processes; however, full functionality testing could not be conducted due to the absence of control software. Advanced quadrupole technology and accurate mass detection make it capable of characterizing, quantifying, and confirming molecular constituents with exceptional precision. Key features include its resolving power of up to 140,000 at m/z 200 and optional enhancement up to 280,000 for comprehensive applications from low-abundance ion quantitation to protein complex analysis. Ideal for both large and small molecule research, the system's dimensions are 30 x 36 x 38 inches with a weight of 375 lb. Note that the computer and software are not included. Inquire about additional validation and calibration services if required.
Technician comment
Unit powers on and completes initial startup. Full functional testing could not be performed due to required control software not being available at time of evaluation. Instrument is pre-owned and was removed from a laboratory environment. Overall physical condition appears good with minimal wear consistent with previous use. Inquire about validation and calibration services if available for an additional cost. See photos for details.
Key Features
- Advanced quadrupole technology (AQT) for superior precursor isolation
- Resolving power up to 140,000 (FWHM) at m/z 200
- Optional enhanced resolution to 280,000 (FWHM) at m/z 200
- Higher-energy collisional dissociation (HCD) fragmentation
- Dynamic range >5000:1 and mass range 50 to 6,000 m/z
- Automatic gain control ensures optimal ion fill for all scans
Specifications
- Resolving power: 140,000 @ m/z 200; Optional 280,000 @ m/z 200
- Mass range: 50 to 6,000 m/z
- Scan rate: Up to 12 Hz at a resolution of 17,500 @ m/z 200
- Mass accuracy: Internal: <1 ppm RMS, External: <3 ppm RMS
- Sensitivity: Full MS 500 fg on column S/N 100:1, SIM 30 fg S/N 100:1
- Polarity switching: One full cycle in <1 sec
Weight
Imperial: 450.0 Pounds
Metric: 204.12 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 43.2 lb x 45.6 lb
Metric: 91.44 cm x 109.73 cm x 115.82 cm
Harmonized Code
9027.20
Harmonized Code Details
Harmonized Code 9027.20 signifies instruments and apparatus for physical or chemical analysis, particularly mass spectrometers. This code is suitable due to its application in mass spectrometry analysis within laboratory settings.
