Beckman Coulter VI Cell XR Cell Viability Analyzer 383556

Product Information

The Beckman Coulter VI Cell XR Cell Viability Analyzer 383556 is a powerful system designed to perform the Trypan Blue Dye Exclusion method automatically, enabling easy and automated cell analysis. The Vi-CELL software provides pre-programmed and customizable analysis options for consistent and accurate analysis of cell systems and diverse cell species. The system integrates powerful, flexible software with bioprocess tracking, auto-sampler queue & control monitoring features, and real-time cellular imaging for data parameters not available with standard aperture cell counting methods.

• Automatic Trypan Blue Dye Exclusion method
• Pre-programmed and customizable analysis options
• Real-time cellular imaging
• Bioprocess tracking and control monitoring

• Operating Principle: analysis of video images
• Sample Type: spatial data
• Cell Size Range: 3 microns to 70 microns (system capable of detecting particles down to 2 microns)
• Analysis Rate: up to 50 Images in 2.5 minutes
• Digitizing Resolution: 1.45 mega-pixels
• Concentration Range: 0.5 x 10^5 to 10 x 10^6 Cells/mL
• Viability Range: 0 to 100%
• Power: 50 watts (65 watts max.)
• Temperature: 10 to 40C (50 to 104F)

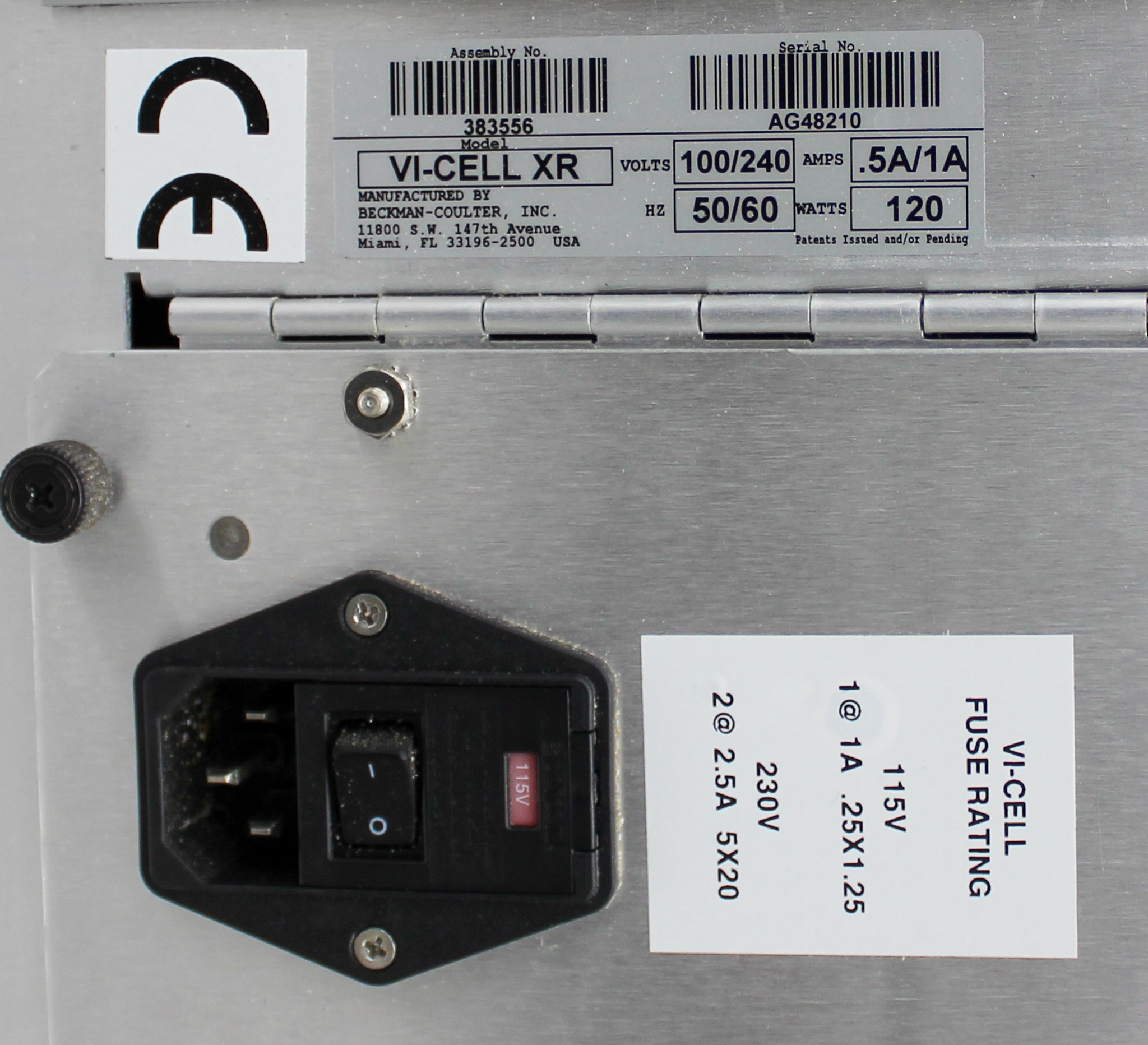

• Fuses: 1 - 120 V 1 A SLO-BLO, 2 - 240 V 2.5 A SLO-BLO

Metric: 27.2155 kg
Imperial: 60 lb

Metric: 31 cm x 48 cm x 71 cm
Imperial: 17 in x 31 in x 28 in
